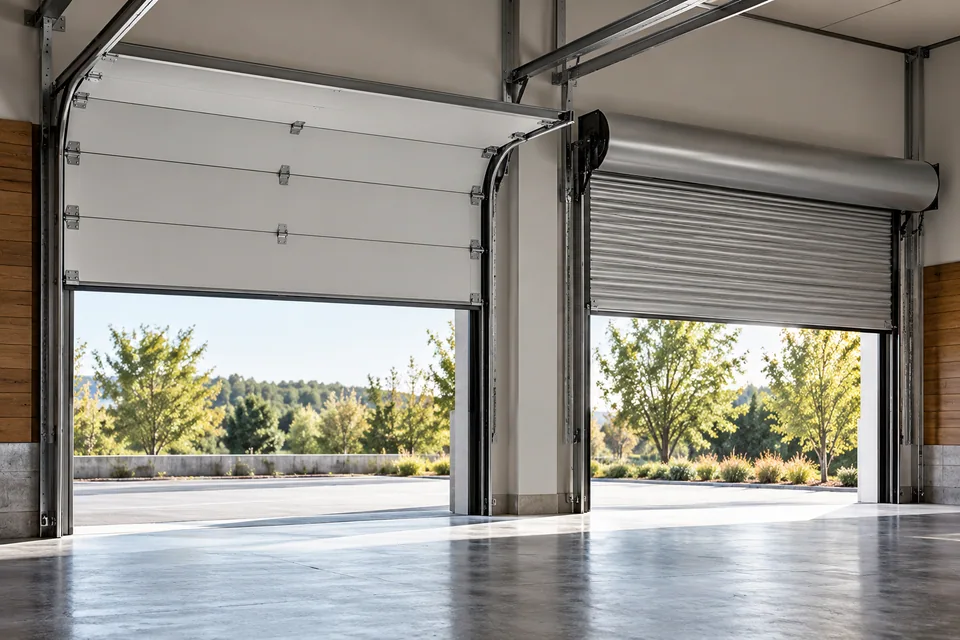

A sectional door usually travels on tracks into the space behind the opening, while a roll-up curtain coils around a barrel. Compare the actual drawings for the proposed systems before treating either arrangement as space-saving.
The garage door collection includes both sectional and roll-up categories. Select the operating type first, then confirm the construction and installation envelope for the proposed configuration. Category availability does not establish dimensions or performance for an individual door.
Where does each garage-door system go when open?
Show the opening and the surrounding space in plan and section. For a sectional proposal, request the track route and the position of the open door. For a roll-up proposal, request the curtain and barrel arrangement from the system supplier. Include access needed for installation and future service.
Record beams, pipes, ceiling changes and side obstructions. Avoid assuming that a system will fit because its closed elevation matches the opening. The operating envelope is the drawing that resolves the space question.
Compare the layout requirements
| Review item | Sectional proposal | Roll-up proposal |
|---|---|---|
| Moving element | Connected door sections | Curtain and barrel arrangement |
| Space drawing | Track path and open-door position | Barrel position and curtain path |
| Supporting interfaces | Track, hardware and operator supports | System-specific curtain and barrel supports |
| Appearance | Panel joints, glazing and surface treatment | Curtain appearance and visible enclosure, if proposed |
| Service documentation | Selected sectional assembly instructions | Selected roll-up assembly instructions |
Each column requires its own model-specific evidence. The table is not a claim that one system needs less space in every situation.
Match the choice to the intended use
Explain the building use, desired facade, opening frequency assumptions supplied by the project team and any performance requirements. State whether glazing, a timber-look surface or coordination with an entrance is important. Ask how the proposed system addresses these priorities.
Use the sectional overhead family when developing a sectional brief. Use the roll-up garage door category for a coiling-curtain proposal and compare it against the same project requirements. Do not carry a thermal, wind or other claim from one assembly into another because both are called garage doors.
Treat replacement as a new coordination exercise
An existing opening may contain tracks, supports, wiring and an operator associated with the old system. Have the responsible installer identify which items can remain and which need replacement. The old door’s overall size does not establish compatibility with a different operating arrangement.
Prepare the garage measurement record and add photos of the existing equipment. Clearly label information that is unknown. Installation and work on counterbalance or spring equipment should follow the selected system’s instructions and be handled by capable personnel.
Compare installation envelopes, not only clear opening size
Draw two sections through the same building opening. Mark the space used by the stored door, operating mechanism, supports and service access. A roll-up barrel may compete with a beam at the head; a sectional layout may compete with a light, duct or equipment farther inside.
Use DASMA’s sectional-door terminology to keep the measurement labels consistent, then obtain required dimensions from the selected manufacturer. A terminology sheet does not establish the clearance for an unidentified model.
Next, record daily use and the intended appearance. If frequent pedestrian access is needed, ask the designer how that route is provided rather than assuming the vehicle door solves it. Request a complete quote for each feasible arrangement with the same installation and operator boundary. An option that cannot fit its support or service requirements is not a cheaper equivalent.
A tilt-up garage door is a separate single-panel alternative. Include its moving-panel sweep and open position in a third drawing when it is under consideration. Keep that review separate from both the sectional track route and the roll-up barrel envelope.
Compare the complete supply and support scope
Request a component list, operator scope, installation documents and spare-part identification for each alternative. Establish who provides the local installation and how later technical questions will be handled. Include packing and delivery responsibilities in the comparison.
Dealers can use the garage supply planning guide to structure these questions. Keep each system’s quotation and drawings separate until the project team has selected an arrangement. A decision based on the accepted operating envelope, documented assembly and support scope is more useful than selecting on a generic label such as overhead, roller or panel lift alone.
Before you specify
Questions worth asking
Does a roll-up door always need less headroom?
No. Its barrel, hood, supports and operator have their own installation envelope. Compare model-specific sections for the actual opening.
Sources & further reading
About this guide
A practical starting point.
Use this guide to prepare your project brief and compare proposals. Construction details and installation requirements must be checked against the selected system and its approved documents.
