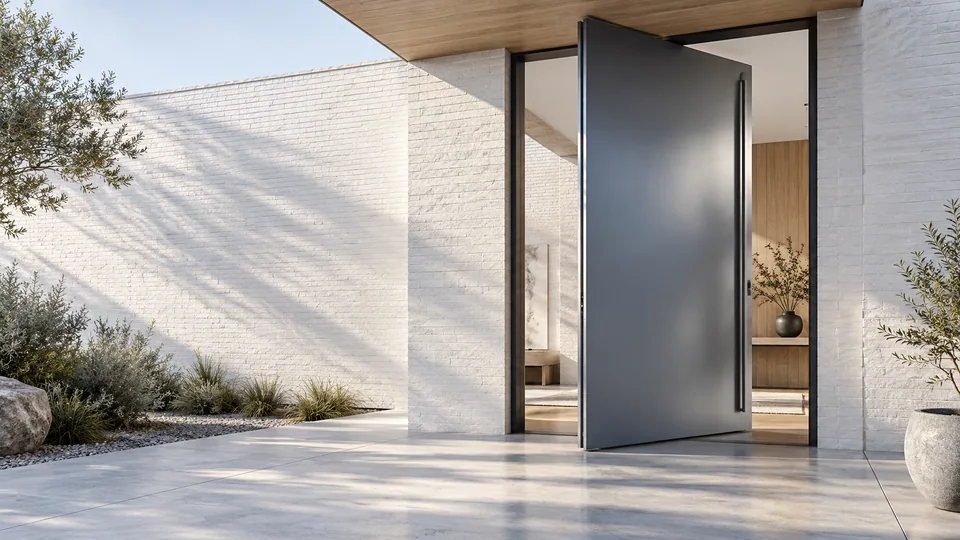

An aluminum pivot door turns on a pivot set rather than a conventional line of side hinges. It can create a generous architectural entrance, but the visible leaf width and the usable passage are different dimensions. Start with the opening and the intended movement before choosing a surface pattern.
What to resolve before choosing a design
| Decision | Information to confirm |
|---|---|
| Pivot offset | Record the pivot centerline and how it changes the clear passage and sweep. |
| Floor and head support | Coordinate the structural fixing, finished floor level and pivot hardware interface. |
| Leaf weight and geometry | Review the whole leaf assembly, glazing and hardware together; appearance alone does not establish a safe size. |
Configuration and material choices
Wood-look and fluted surfaces can be considered within the pivot family. Confirm the coating system and physical sample; do not treat a timber-look aluminum face as solid wood.
Record frame material, leaf or panel construction, visible surface, glazing and hardware as separate specification fields. This prevents a finish name from being mistaken for the underlying construction. Each alternative should be checked against the same opening and intended use.
Resolve pivot geometry before releasing the elevation
A pivot position changes how much of the opening is available for passage and how the leaf moves on each side of its axis. Ask for a plan view showing the leaf in its closed and open positions, the finished floor datum and adjacent walls. Mark the required usable passage independently of the overall leaf width. Include any nearby handle, step or wall return that could affect movement.
The hardware review should use the proposed full assembly, including cladding, glass and handles. Request the actual pivot reference and installation interface rather than selecting hardware from appearance alone. Where the design changes after the first drawing, ask whether the leaf weight, support and fixing review must be updated. Keep the approved finish sample and the latest geometry together in the order record.
Evidence and installation boundaries
Specification limits, material availability and performance documentation are subject to technical review. A material or component report is not automatically evidence for the complete door or window assembly. Tell us about the project requirements early so the applicable configuration can be assessed.
Installation must follow the agreed drawings and the actual product instructions, with responsibilities assigned to competent people. This collection is a selection resource, not a substitute for a product-specific installation manual.
Plan the next step
Explore Black Aluminum Pivot Entrance Door for the related configuration.
Explore Wood-Look Fluted Aluminum Pivot Door for the related configuration.
Explore Pivot Door Specification & Shop Drawing Guide for the related project task.
Explore Door Specification Support for Architects for the related project task.
Explore Matching Front & Garage Door Designs for the related project task.
Send your project brief with opening sizes, quantities and the documents already available.
Before you specify
Questions worth asking
Can the size and finish be customized?
Share the opening dimensions, intended use and preferred finish. Feasibility, material availability and the final configuration are subject to technical review; no universal size range is assumed.
What should I send for a quotation?
Send a marked drawing or door schedule, project country, quantity, installation context and any specified performance requirements. Identify which hardware and glazing you need included.
Are the images confirmed product specifications?
The images illustrate design and finish options. Your written quotation, approved drawings and material samples define the final configuration and supply scope.
